Specyfikacja |
Certyfikaty zgodności |
CE |
Okres gwarancji |
2 lat(a) |
Ostrzeganie |
Safety conditions for heat sink and fan
• Use the product in accordance with its intended use, as im- proper use may damage the product.
• Do not expose the device to moisture. • The device should be cleaned only with a dry cloth. • Independent repairs and modification result automatic loss
of the warranty.
• Hitting or dropping may damage the product. |
Funkcje techniczne |

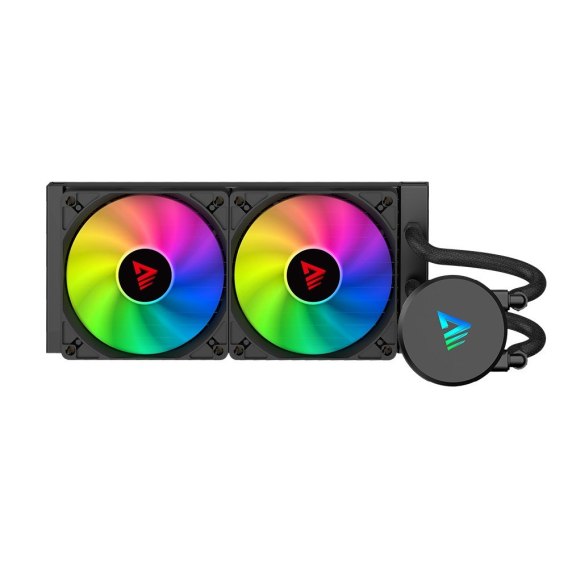

Technical specification:
• TDP: 250 W
• Cooling standard: 240 mm
• Radiator dimensions: 277 × 120 × 27 mm
• Cooling pipes length: 400 mm
• Heat sink material: Aluminium
• Water block base material: Copper
• Number of fans: 2 × 120 mm
• Fan power connector: 4-pin (PWM) (male + female)
• Fan LED connector: 3-pin (male + female)
• Pump power connectors: 3-pin
• Pump LED connector: 3-pin (male + female)
• Fan speed: 900 - 1800 RPM • Pump speed: 2250 - 2750 RPM
• Intel compatibility: LGA 775 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / 1700 / 2011 / 2066
• AMD compatibility: AM4 / AM5
• Set contents: Radiator with pump, 2 × 120 mm fans, mounting
accessories, thermal paste, user manual |
Złącze wentylatora |
4-pin |
Tworzywo bloku wodnego |
Miedź |
Materiały |
Aluminium |
Tworzywo chłodnicy |
Aluminium |
Liczba wentylatorów |
2 wentylatory |
Kolor produktu |
Czarny |
Oświetlenie LED |
Tak |
Tworzywo płyta podstawy |
Miedź |
Kolor podświetlenia |
Wielokolorowy |
Typ złącza LED |
3-pin |
Certyfikaty |
This symbol indicates that electrical appliances should not be discarded with other household waste. Used equipment sho- uld be handed over to a local collection point for this type of waste or to a recycling center. Please contact your local authorities for information about disposal methods available in your area. Wa- ste electrical equipment may contain hazardous substances (e.g.
mercury, lead, cadmium, chromium, phthaltes) which can get
into air, soil and groundwater when leaking from used appliances.
Environmental pollution with these substances leads to their bio- accumulation, causing lesion of disease in living organisms, which
would pose a risk to human and animal health or life. Households
may contribute to environmental protecion by proper waste collection. In such way, hazardous substances from the equipment
are neutralized and valuable secondary raw materials are reused
for production of new equipment. |
Termiczny układ zasilania (TDP) |
250 W |
Waga produktu |
1,53 kg |
Głębokość opakowania |
15 mm |
Wysokość produktu |
450 mm |
Waga wraz z opakowaniem |
1,97 kg |
Szerokość pompy |
15 cm |
Długość tuby |
40 cm |
Szerokość opakowania |
20 mm |
Szerokość produktu |
205 mm |
Wysokość opakowania |
35 mm |
Obsługiwane gniazda procesora |
LGA 2011 (Socket R) |
Obsługiwane gniazda procesora |
LGA 2066 |
Obsługiwane gniazda procesora |
LGA 1700 |
Obsługiwane gniazda procesora |
LGA 1151 (Socket H4) |
Obsługiwane gniazda procesora |
LGA 775 (Socket T) |
Obsługiwane gniazda procesora |
LGA 1150 (Socket H3) |
Obsługiwane gniazda procesora |
LGA 1200 (Socket H5) |
Obsługiwane gniazda procesora |
LGA 1155 (Socket H2) |
Obsługiwane gniazda procesora |
LGA 1156 (Socket H) |
Obsługiwane gniazda procesora |
LGA 1366 (Socket B) |
Model |
Zestaw do chłodzenia płynami |
Procesor |
Intel® Core™ i7 |
Procesor |
Intel® Core™ i3 |
Procesor |
Intel® Core™ i5 |
Procesor |
Intel® Core™ i9 |
Prędkość obrotowa (min) |
900 RPM |
Maksymalna prędkość wentylatora |
1800 RPM |
Prędkość motora pompy (maksymalna) |
2750 RPM |
Prędkość obrotowa (max) |
2750 RPM |
Średnica czaszy wentylatora |
12 cm |
Minimalna prędkość wentylatora |
900 RPM |
Przeznaczenie |
Obudowa komputera |
Złącze pompy |
3-pin |
Modulacja szerokości impulsu (PWM) wsparcie |
Tak |
Ilość sztuk |
1 |
Prędkość motora pompy (minimalna) |
2250 RPM |
Obsługiwane produkty |
Compatibilidad con Intel: LGA 775 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / 1700 / 2011 / 2066
Compatibilidad con AMD: AM4 / AM5 |
Liczba śrub |
16 |
W zestawie ramka adaptera |
Tak |
Zestaw do montażu |
Tak |
Przewody |
3-pin, 4-pin, SATA |
Dołączone śruby |
Tak |
Podręcznik użytkownika |
Tak |
Dołączone pady termiczne |
Nie |
Kontroler RGB w zestawie |
Tak |
W zestawie pilot zdalnego sterowania |
Nie |
Instrukcja montażu |
Tak |
Utylizacja odpadów elektrycznych i elektronicznych (WEEE) |
Tak |
Ilość gniazd SATA |
1 |
Dostępna karta informacyjna produktu lub artykułu? |
Tak |
Szerokość |
350mm |
Długość |
210mm |
Wysokość |
150mm |
